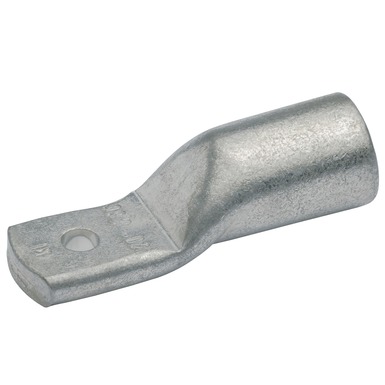

Tubular Cable Lugs For Switchgear Connections, Standard Type
Material: Copper (EN13600)
Surface: Tin-plated to protect against corrosion
Additional information: Also available with inspection hole as a special version,
Part Number appendix “MS”
Assembly instruction: Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter
“Sleeves for compacted conductors and sector shaped conductors – Cu”
Features:
- Simple and safe connection due to flat contact surfaces and internal chamfer
| Part Number |
Nominal cross section mm² |
Conn. Bolts Dia. |
d1 | a | b | d2 | d4 | c1 | c2 | L | Weight/100 pcs. ~kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5SG6 | 35 | M6 | 8,5 | 17 | 15,0 | 6,4 | 12,0 | 7,5 | 7,5 | 32 | 1,78 |
| 6SG6 | 50 | M6 | 10,0 | 19 | 15,0 | 6,5 | 14,0 | 10,0 | 10,0 | 37 | 2,95 |
| 6SG8 | 50 | M8 | 10,0 | 19 | 17,0 | 8,5 | 14,0 | 10,0 | 10,0 | 37 | 2,82 |
| 6SG10 | 50 | M10 | 10,0 | 19 | 19,0 | 10,5 | 14,0 | 11,5 | 12,0 | 39 | 3,08 |
| 7SG6 | 70 | M6 | 12,0 | 21 | 17,0 | 6,5 | 16,5 | 10,0 | 10,0 | 43 | 4,22 |
| 7SG8 | 70 | M8 | 12,0 | 21 | 17,0 | 8,5 | 16,5 | 10,0 | 10,0 | 43 | 4,10 |
| 7SG10 | 70 | M10 | 12,0 | 21 | 19,0 | 10,5 | 16,5 | 11,5 | 12,0 | 44 | 4,45 |
| 7SG12 | 70 | M12 | 12,0 | 21 | 19,0 | 13,0 | 16,5 | 13,0 | 13,0 | 46 | 4,22 |
| 8SG6 | 95 | M6 | 13,5 | 25 | 19,0 | 6,5 | 18,0 | 11,5 | 12,0 | 48 | 5,49 |
| 8SG8 | 95 | M8 | 13,5 | 25 | 19,0 | 8,5 | 18,0 | 11,5 | 12,0 | 48 | 5,46 |
| 8SG10 | 95 | M10 | 13,5 | 25 | 19,0 | 10,5 | 18,0 | 11,5 | 12,0 | 48 | 5,13 |
| 8SG12 | 95 | M12 | 13,5 | 25 | 19,0 | 13,0 | 18,0 | 13,0 | 13,0 | 49 | 5,15 |
| 9SG6 | 120 | M6 | 15,0 | 26 | 19,0 | 6,5 | 19,5 | 11,5 | 14,0 | 51 | 6,16 |
| 9SG8 | 120 | M8 | 15,0 | 26 | 19,0 | 8,5 | 19,5 | 11,5 | 14,0 | 51 | 5,94 |
| 9SG10 | 120 | M10 | 15,0 | 26 | 19,0 | 10,5 | 19,5 | 11,5 | 14,0 | 51 | 5,81 |
| 9SG12 | 120 | M12 | 15,0 | 26 | 19,0 | 13,0 | 19,5 | 14,0 | 14,0 | 51 | 5,92 |
| 10SG6 | 150 | M6 | 16,5 | 30 | 19,0 | 6,5 | 21,0 | 11,5 | 14,0 | 56 | 6,85 |
| 10SG8 | 150 | M8 | 16,5 | 30 | 19,0 | 8,4 | 21,0 | 11,5 | 14,0 | 56 | 6,80 |
| 10SG10 | 150 | M10 | 16,5 | 30 | 19,0 | 10,5 | 21,0 | 11,5 | 14,0 | 56 | 6,75 |
| 10SG12 | 150 | M12 | 16,5 | 30 | 19,0 | 13,0 | 21,0 | 15,0 | 15,0 | 57 | 7,15 |
| 11SG10 | 185 | M10 | 19,0 | 30 | 24,5 | 10,5 | 24,0 | 11,5 | 18,0 | 65 | 10,59 |
| 11SG12 | 185 | M12 | 19,0 | 30 | 31,0 | 13,0 | 24,0 | 18,0 | 18,0 | 65 | 11,09 |
| 11SG16 | 185 | M16 | 19,0 | 30 | 31,0 | 17,0 | 24,0 | 18,0 | 18,0 | 65 | 9,76 |
| 12SG10 | 240 | M10 | 21,0 | 35 | 31,0 | 10,5 | 26,0 | 11,5 | 19,0 | 72 | 12,70 |
| 12SG12 | 240 | M12 | 21,0 | 35 | 31,0 | 13,0 | 26,0 | 21,5 | 19,0 | 72 | 13,72 |
| 12SG16 | 240 | M16 | 21,0 | 35 | 31,0 | 17,0 | 26,0 | 21,5 | 19,0 | 72 | 13,28 |
| 13SG10 | 300 | M10 | 23,5 | 44 | 31,0 | 10,5 | 29,5 | 11,5 | 24,0 | 87 | 19,70 |
| 13SG12 | 300 | M12 | 23,5 | 44 | 31,0 | 13,0 | 29,5 | 24,0 | 24,0 | 87 | 22,72 |
| 13SG16 | 300 | M16 | 23,5 | 44 | 31,0 | 17,0 | 29,5 | 24,0 | 24,0 | 87 | 22,50 |
