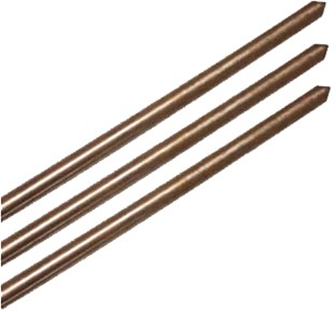

Solid Copper Earthing Rods
Solid Copper Earthing Rods are made for solid copper bar and are internally threaded for joining. These solid copper Earthing Rods are used where high corrosion resistance is there for long life required.
| Rod Diameter | Length | Thread | Unit Weight kg | Part Number |
|---|---|---|---|---|
| 15mm | 1200 mm | M10 | 1.880 kg | CCER-01 |
| 16mm | 1500 mm | M10 | 2.670 kg | CCER-02 |
| 16mm | 1800 mm | M10 | 3.200 kg | CCER-03 |
| 16mm |
2400 mm |
M10 |
4.300 kg |
CCER-04 |
| 16mm |
3000 mm |
M10 |
5.360 kg |
CCER-05 |
| 20mm |
1200 mm |
M10 |
3.350 kg |
CCER-06 |
| 20mm |
1500 mm |
M10 |
4.200 kg |
CCER-07 |
| 20mm |
1800 mm |
M10 |
5.100 kg |
CCER-08 |
| 20mm |
2400 mm |
M10 |
6.710 kg |
CCER-09 |
| 20mm |
3000 mm |
M10 |
8.400 kg |
CCER-10 |
| 25mm |
1200 mm |
M12 |
5.250 kg |
CCER-11 |
| 25mm |
1500 mm |
M12 |
6.550 kg |
CCER-12 |
| 25mm |
1800 mm |
M12 |
7.860 kg |
CCER-13 |
| 25mm |
2400 mm |
M12 |
10.500 kg |
CCER-14 |
| 25mm |
3000 mm |
M12 |
13.100 kg |
|
