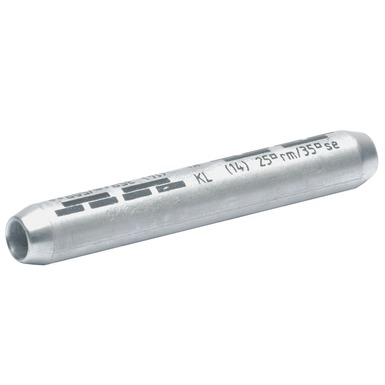

Reducing Compression Joints, Al, Barrier Type Acc To DIN 46267, Part 2

Material: E-aluminium
Surface: Bright
Additional information: re = round single solid wire, rm = round multi-stranded
se = sector shaped single solid wire, sm = sector shaped multi-stranded,
sector shaped conductors must be pre-rounded

Features:

Barrier design with oil stop
With code number for clear tool assignment
Easy to process due to crimp markings
Simple cable entry due to precise internal chamfer
For pre-rounded sector shaped conductors
In nominal cross-section area tube dimension to DIN 46267, Part 2
Ideal for connecting differing conductor cross-sections
Filled with contact grease for optimum transfer resistance

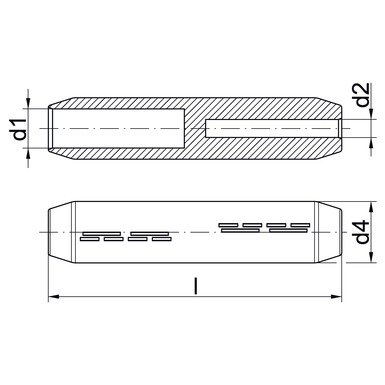

PART NO.	RE/SE From	RM/SM from	RE/SE To	RM/SM To	Code	d1	d2	d4	l	Number Of Crimps Al (7 mm)	Al (wide)	Weight/100 pcs. ~kg
425R25	50	35	35	25	14	8,0	6,8	14	95	4/4	2/2	2,800
426R35	70	50	50	35	16	9,8	8,0	16	95	4/4	2/2	3,450
428R50	120	95	70	50	22	13,2	9,8	22	105	4/4	2/2	7,600
428R70	120	95	95	70	22	13,2	11,2	22	105	4/4	2/2	7,350
429R70	150	120	95	70	22	14,7	11,2	23	110	4/4	2/2	7,100
429R95	150	120	120	95	22	14,7	13,2	23	110	4/4	2/2	6,550
430R70	185	150	95	70	25	16,3	11,2	25	110	4/4	2/2	9,800
430R95	185	150	120	95	25	16,3	13,2	25	110	4/4	2/2	9,500
430R120	185	150	150	120	25	16,3	14,7	25	110	4/4	2/2	8,650
431R70	240	185	95	70	28	18,3	11,2	28,5	130	—	2/2	15,050
431R95	240	185	120	95	28	18,3	13,2	28,5	130	—	2/2	14,400
431R120	240	185	150	120	28	18,3	14,7	28,5	130	5/5	2/2	13,700
431R150	240	185	185	150	28	18,3	16,3	28,5	130	5/5	2/2	14,17
432R120	300	240	150	120	32	21,0	14,7	32	130	—	2/2	18,800
432R150	300	240	185	150	32	21,0	16,3	32	130	5/5	2/2	18,125
432R185	300	240	240	185	32	21,0	18,3	32	130	5/5	2/2	17,275
433R150	–	300	185	150	34	23,3	16,3	34	135	5/5	2/2	21,100
433R185	–	300	240	185	34	23,3	18,3	34	135	5/5	2/2	20,120
433R240	–	300	300	240	34	23,3	21,0	34	135	5/5	2/2	18,730
434R300	–	400	–	300	38	26,0	23,3	34	165	—	3/3	31,200
