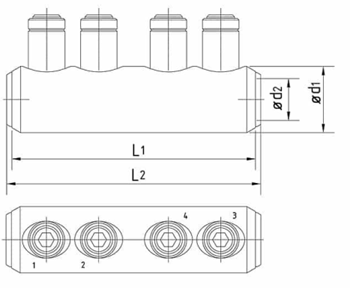

Mechanical Shearbolt Cable Connectors LV MV HV 11KV – 33KV
| Pfisterer Sicon Order Reference |
Solid Circular sqmm |
Stranded Circular sqmm |
Solid Sector sqmm |
Stranded Sector sqmm |
Compacted Circular sqmm |
Hexagon Size |
Number of Bolts |
Overall Length |
Barrel Diameter |
Internal Bore |
Network Rail PADS Number |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 332/601/010 | 10- 95 sqmm | 10-95sqmm | 50- 95sqmm | 35-70sqmm | 10-95sqmm | SW5 | 2 | 65.0 | 24.0 | 13.0 | 054/212155 |
| 332/607/010 | 25- 150 sqmm | 25- 150 sqmm | 35- 120sqmm | 35- 120sqmm | 25-150sqmm | SW5 | 2 | 68.0 | 28.0 | 16.3 | N/A |
| 332/595/010 | 25- 150 sqmm | 25- 150 sqmm | 25- 150 sqmm | 50-150sqmm | 25-150sqmm | SW6 | 4 | 102.0 | 28.0 | 16.3 | 054/010281 |
| 332/592/010 | 50-240sqmm | 50-185sqmm | 50-185sqmm | 50-150sqmm | 50-240sqmm | SW6 | 4 | 126.0 | 33.0 | 20.0 | 054/010282 |
| 332/614/010 | 50-240sqmm | 50-240sqmm | 50-240sqmm | 50-240sqmm | 50-240sqmm | SW8 | 4 | 126.0 | 35.0 | 21.0 | N/A |
| 332/602/010 | 95-400sqmm | 95-300sqmm | 50-240sqmm | 95-240sqmm | 95-300sqmm | SW8 | 4 | 140.0 | 38.0 | 24.0 | 054/212156 |
| 332/617/010 | 185-500sqmm | 185-400sqmm | 185-240sqmm | 185-400sqmm | 185-400sqmm | SW8 | 6 | 170.0 | 42.0 | 26.0 | N/A |
| 332/603/010 | 300-800sqmm | 300-630sqmm | N/A | 300-400sqmm | 300-630sqmm | SW8 | 6 | 230.0 | 50.0 | 33.3 | 054/212168 |
