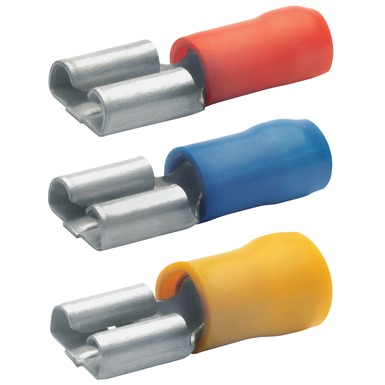

Insulated Receptacles, Tinned Bronze
Material: Bronze (CuSnZn)
Insulation sleeve: PVC
Surface: Tin-plated to protect against corrosion
Features
- To DIN 46245, part 3
- Cross-section-dependent colour-coding
- Temperature resistance: to 70 °C
- High quality bronze material provides optimum spring characteristic and improved contact strength
| PART NO. | Nominal cross- section MM² |
Nominal Size According To DIN |
Colour | Tab Thickn. |
Tab Width |
L1 | L2 | Ins. Mat. |
Weight/100 pcs. ~kg |
|---|---|---|---|---|---|---|---|---|---|
| 720BZ | 0,5-1 | 6,3 – 1 | 0,8 | 6,3 | 22 | 7,5 | PVC | 0,09 | |
| 730BZ | 1,5-2,5 | 6,3 – 2,5 | 0,8 | 6,3 | 21 | 7,4 | PVC | 0,09 | |
| 750BZ | 4-6 | 6,3 – 6 | 0,8 | 6,3 | 21 | 7,5 | PVC | 0,10 |
