Insulated Pin Terminals, Cu With Easy-Entry
Material: Insulation sleeve: PA: Copper (EN13599)
Surface: Tin-plated to protect against corrosion
Features:
- Insulating, halogen-free with easy-entry cable insertion
- Improved contact properties due to grooved profile
- Cross-section-dependent colour-coding
- Temperature resistance: up to 105 °C

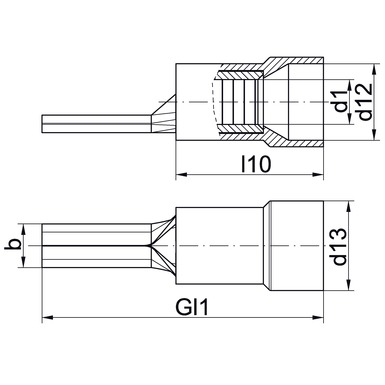

| PART NO. | Nominal cross-section MM² |
Colour | D1 | B | D12 | D13 | GL1 | L10 | Weight 100 pcs. ~kg Cu |
Weight 100 pcs. ~kg Total |
|---|---|---|---|---|---|---|---|---|---|---|
| ST1716IS | 10 | 4,3 | 4,3 | 7,4 | 9,4 | 33,0 | 19,0 | 0,27 | 0,31 | |
| ST1717IS | 16 | 5,4 | 5,5 | 8,6 | 10,6 | 38,5 | 20,5 | 0,39 | 0,44 | |
| ST1718IS | 25 | 6,7 | 6,8 | 12,5 | 14,5 | 43,5 | 23,5 | 0,63 | 0,73 | |
| ST1719IS | 35 | 8,2 | 8,0 | 14,0 | 16,4 | 51,5 | 27,5 | 1,17 | 1,34 | |
| ST1720IS | 50 | 9,5 | 9,5 | 15,5 | 18,0 | 59,0 | 33,0 | 1,79 | 2,10 | |
| ST1721IS | 70 | 11,2 | 11,0 | 18,0 | 20,5 | 69,0 | 38,0 | 2,92 | 3,20 | |
| ST1722IS | 95 | 13,5 | 12,5 | 20,7 | 23,5 | 71,0 | 40,0 | 4,30 | 4,70 |
