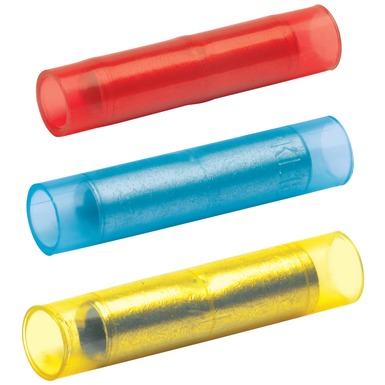

Insulated Butt Connectors, Cu, Standard Type
Material: Connector: copper (EN 13600)
Insulating sleeve: PA, halogen-free
Surface: Tin-plated to protect against corrosion
Assembly instruction: Sleeves for compacted conductors and sleeves for 3-core and 4-core cables, see chapter
“Sleeves for compacted conductors and sector shaped conductors – Cu”
Features:
- With butt marks for precise cable insertion
- Simple cable entry due to precise internal chamfer
- Temperature resistance: up to 105 °C
| Part Number |
Nominal cross section mm² |
Colour | d1 | d12 | d13 | L10 | Weight 100 pcs. ~kg Cu |
Weight 100 pcs. ~kg Total |
|---|---|---|---|---|---|---|---|---|
| 622R | 10 | 4,5 | 7,0 | 9,0 | 42 | 0,72 | 0,84 | |
| 623R | 16 | 5,5 | 8,5 | 10,5 | 50 | 1,00 | 1,16 | |
| 624R | 25 | 7,0 | 10,0 | 12,0 | 57 | 1,41 | 1,63 | |
| 625R | 35 | 8,5 | 12,0 | 14,4 | 65 | 2,24 | 2,60 | |
| 626R | 50 | 10 | 14,0 | 16,4 | 72 | 3,36 | 3,81 | |
| 627R | 70 | 12 | 16,4 | 19,0 | 80 | 4,87 | 5,46 | |
| 628R | 95 | 13,5 | 17,8 | 20,8 | 87 | 5,91 | 6,74 |
