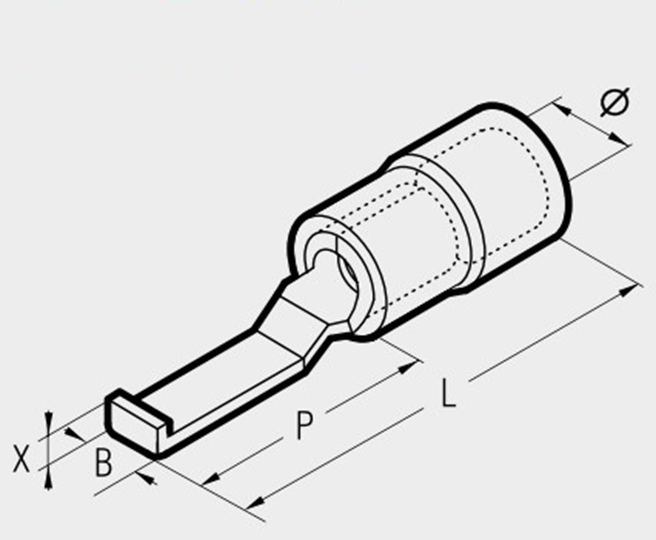

Hooked Blade Terminals
Conductor Size sqmm (AWG) |
CUBANO Type |
Ø |
B |
Cable Crimp Terminal Dimensions mm P |
L |
X |
|---|---|---|---|---|---|---|
Red 0.25 ÷ 1.5 (22÷16) |
RF-PPL 30 RF-PPL 46 |
3 .9 3 .9 |
3 .0 4.6 |
17.5 17.5 |
28.4 28.4 |
1.7 1.7 |
Blue 1.5÷2.5 (16÷14) |
BF-PPL 30 BF-PPL 46 |
4 .9 4 .9 |
3 .0 4.6 |
17.5 17.5 |
28.4 28.4 |
1.7 1.7 |
| Yellow 4÷6 (12÷10) |
GF-PPL 46 | 6 .7 | 4 .6 | 17.5 | 32.7 | 1.9 |
