Four Hole Transformer Cable Lugs

Four Hole Transformer Cable Lugs

Material: E-Copper
Finish: Electro Tinned

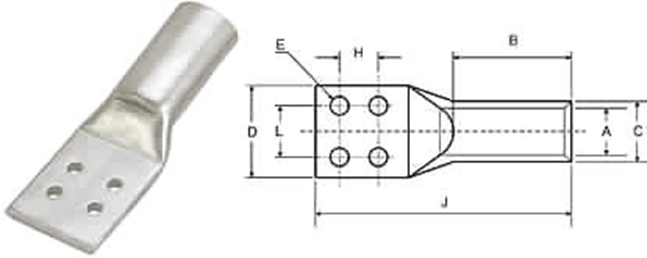

SR.NO	Cable mm2	Stud Hole	Dimension in mm							CAT. NO
SR.NO	Cable mm2	Stud Hole	A	C	D	B	L	H	J	CAT. NO
1721 1722	300	8.5 10.5	23.5 23.5	30 30	56 56	42 42	35 35	25 25	101 101	CTT 3004E8 CTT 3004E10
1723 1724	400	8.5 10.5	28.5 28.5	36.5 36.5	56 56	44 44	35 35	25 25	114 114	CTT 4004E8 CTT 4004E10
1725 1726	500	8.5 10.5	30 30	39 39	56 56	48 48	35 35	25 25	124 124	CTT 5004E8 CTT 5004E10
1727 1728	630	8.5 10.5	35 35	45 45	65 65	56 56	35 35	25 25	144 144	CTT 6304E8 CTT 6304E10
1729 1730	800	8.5 10.5	35 35	45 45	63.8 63.8	58 58	35 35	25 25	148 148	CTT 8004E8 CTT 8004E10
1731 1732	1000	8.5 10.5	43 43	56.2 56.2	78.5 78.5	90 90	35 35	25 25	250 250	CTT 10004E8 CTT 10004E10
