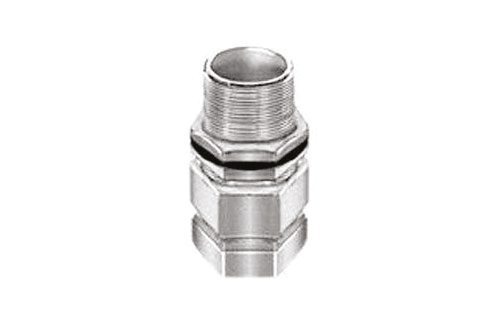

Double Compression Flame Proof Brass Cable Gland (Heavy Duty)
| ย ย ย ย SR.NO.ย ย ย |
ALL DIMEN ARE IN mm Max O.D ย ย ย |
TOLERANCE (-+1MM) ย CABLE OVERALL OVERย ย ย |
MATERIAL: BRASS ย Dimn. DIA. UNDERย ย ย |
FINISH: NICKEL ย INCH.ย ย |
ย ย ย ย MM.ย ย ย |
ย ย ย ย A ย ย ย |
ย ย ย ย Bย ย ย |
ย ย ย ย Cย ย ย |
ย ย ย ย Dย ย ย |
ย ย ย ย Eย ย ย |
ย ย ย ย Fย ย ย |
ย ย ย ย G |
ย H |
THREADS : BSC (ET) ย CUBANO CAT NO.ย ย ย |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 133 |
15.5 |
15.0 |
10.5 |
3/4″ |
19.0 |
13.5 |
16.5 |
19.0 |
25.0 |
29.0 |
25.0 |
3.5 |
4.0 |
CPF –01S |
| 134 |
19.0 |
18.5 |
13.5 |
3/4″ |
19.0 |
13.5 |
20.0 |
19.0 |
25.0 |
31.5 |
27.5 |
3.5 |
4.0 |
CPF-01 |
| 135 |
19.5 |
18.5 |
13.5 |
1″ |
25.0 |
14.0 |
20.5 |
25.0 |
25.0 |
32.0 |
28.0 |
3.5 |
4.0 |
CPF-01A |
| 136 |
20.0 |
20.0 |
14.0 |
1″ |
25.0 |
18.0 |
21.0 |
25.0 |
25.0 |
36.0 |
31.0 |
4.0 |
4.5 |
CPF-02 |
| 137 |
20.0 |
20.0 |
14.0 |
3/4″ |
19.0 |
14.0 |
21.5 |
19.0 |
25.0 |
36.0 |
31.0 |
4.0 |
4.5 |
CPF-02A |
| 138 |
23.0 |
23.0 |
17.0 |
1″ |
25.0 |
19.0 |
24.0 |
25.0 |
25.0 |
36.5 |
31.5 |
4.0 |
4.5 |
CPF-03 |
| 139 |
26.5 |
26.0 |
20.0 |
1″ |
25.0 |
20.0 |
27.5 |
25.0 |
25.0 |
43.0 |
37.5 |
4.5 |
5.0 |
CPF-04 |
| 140 |
26.5 |
26.0 |
20.0 |
1-1/4″ |
32.0 |
20.5 |
27.5 |
32.0 |
25.0 |
44.0 |
38.0 |
4.5 |
5.0 |
CPR-04A |
| 141 |
30.0 |
30.0 |
24.0 |
1-1/4″ |
32.0 |
25.0 |
31.0 |
32.0 |
25.0 |
47.0 |
41.0 |
4.5 |
5.0 |
CPF-05 |
| 142 |
30.0 |
30.0 |
24.0 |
1-1/2″ |
38.0 |
25.5 |
31.0 |
38.0 |
25.0 |
47.0 |
41.0 |
4.5 |
5.0 |
CPF-05A |
| 143 |
33.0 |
33.0 |
27.0 |
1-1/2″ |
38.0 |
31.0 |
34.0 |
38.0 |
25.0 |
54.0 |
47.0 |
5.0 |
6.0 |
CPF-06 |
| 144 |
33.0 |
33.0 |
27.0 |
1-1/4″ |
32.0 |
25.0 |
34.0 |
32.0 |
25.0 |
54.0 |
47.0 |
5.0 |
6.0 |
CPF-06A |
| 145 |
37.0 |
37.0 |
30.0 |
1-1/2″ |
38.0 |
31.0 |
38.0 |
38.0 |
25.0 |
59.0 |
51.0 |
5.0 |
6.0 |
CPF-07 |
| 146 |
41.0 |
41.0 |
35.0 |
2″ |
50.0 |
38.5 |
42.5 |
50.0 |
25.0 |
64.0 |
56.0 |
5.5 |
6.5 |
CPF-08 |
| 147 |
46.0 |
46.0 |
40.0 |
2″ |
50.0 |
40.0 |
47.0 |
50.0 |
25.0 |
67.5 |
58.5 |
5.5 |
6.5 |
CPF-09 |
| 148 |
52.0 |
52.0 |
46.0 |
2″ |
50.0 |
44.0 |
53.0 |
50.0 |
25.0 |
77.0 |
67.0 |
5.5 |
6.5 |
CPF-010 |
| 149 |
52.0 |
52.0 |
46.0 |
2-1/2″ |
63.0 |
45.0 |
53.0 |
63.0 |
25.0 |
78.0 |
67.5 |
5.5 |
6.5 |
CPF-010A |
| 150 |
60.0 |
60.0 |
54.0 |
2-1/2″ |
63.0 |
56.0 |
61.0 |
63.0 |
25.0 |
92.0 |
80.0 |
6.0 |
7.0 |
CPF-011 |
| 151 |
67.0 |
67.0 |
60.0 |
3″ |
75.0 |
63.0 |
68.0 |
75.0 |
25.0 |
98.0 |
85.0 |
7.0 |
8.0 |
CPF-012 |
| 152 |
78.0 |
78.0 |
72.0 |
3-1/4″ |
82.0 |
74.0 |
79.0 |
82.0 |
25.0 |
113.0 |
98.0 |
7.5 |
8.5 |
CPF-013 |
| 153 |
78.0 |
72.0 |
66.0 |
3″ |
75.0 |
68.0 |
79.0 |
75.0 |
25.0 |
113.0 |
98.0 |
7.5 |
8.5 |
CPF-013A |
| 154 |
84.0 |
84.0 |
78.0 |
3-1/2″ |
88.0 |
78.0 |
85.0 |
88.0 |
25.0 |
121.0 |
105.0 |
7.5 |
8.5 |
CPF-014 |
| 155 |
95.0 |
94.0 |
88.0 |
4″ |
100.0 |
90.0 |
96.0 |
100.0 |
25.0 |
134.0 |
117.0 |
8.5 |
9.5 |
CPRF-015 |
| 156 |
106.0 |
105.0 |
98.0 |
4-1/2″ |
112.0 |
102.0 |
107.0 |
112.0 |
25.0 |
146.0 |
128.0 |
9.0 |
10.0 |
CPF-016 |
