Copper Hook Terminal Ends (Insulated) For Solderless Crimping
To Copper/Aluminium Conductors
Material: Copper IS: 1897
Finish: Electro Tinned
Color Coding Of Insulation Sleeve
Size(MM2): 0.7 – 1.5 – 4-6 – 2.5
Color: Blue – Yellow – Red

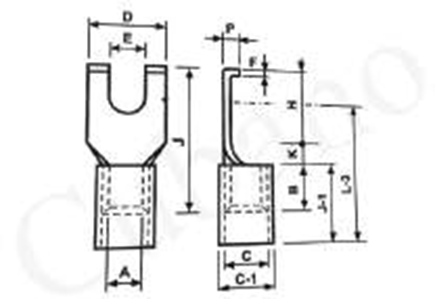

| SR.NO. | AREA mm2 | E | A | C | D | F | B | K | H | J | P | C-1 | J-1 | L-3 | CAT.NO. |
| 857 | 0.75 | 2.3 | 0.9 | 1.9 | 4.6 | 0.5 | 3 | – | 5 | 11 | 1.2 | 3.2 | 8 | 13.0 | CFHI7943 |
| 858 | 1.5 | 2.3 | 1.6 | 3.2 | 6.0 | 0.8 | 5 | – | 5.2 | 13 | 1.0 | 4.8 | 10 | 20.2 | CFHI7944 |
| 859 | 1.5 | 2.3 | 1.6 | 3.2 | 4.6 | 0.8 | 5 | – | 5.2 | 13 | 1.0 | 4.8 | 10 | 20.0 | CFHI7945 |
| 860 | 1.5 | 4.1 | 1.7 | 3.3 | 7.5 | 0.8 | 5 | – | 6.5 | 15 | 2.4 | 4.8 | 10 | 21.5 | CFHI7946 |
| 861 | 1.5 | 3.5 | 1.6 | 3.2 | 6.8 | 0.8 | 5 | 2 | 3 | 15 | 1.6 | 4.8 | 10 | 20.0 | CFHI7947 |
| 862 | 1.5 | 5.1 | 1.6 | 3.2 | 8.0 | 0.8 | 5 | 2 | 5 | 18 | 1.6 | 4.8 | 10 | 22.0 | CFHI7948 |
| 863 | 1.5 | 6.3 | 1.6 | 3.2 | 12.0 | 0.8 | 5 | 3 | 5 | 19 | 1.6 | 4.8 | 10 | 23.0 | CFHI7949 |
| 864 | 1.5 | 8.1 | 1.6 | 3.2 | 12.0 | 0.8 | 5 | 3 | 5 | 19 | 1.6 | 4.8 | 10 | 23.0 | CFHI7950 |
| 865 | 2.5 | 3.6 | 2.3 | 3.9 | 6.5 | 0.8 | 5 | 2 | 3 | 15 | 1.6 | 5.5 | 10 | 20.0 | CFHI7951 |
| 866 | 2.5 | 4.1 | 2.3 | 3.9 | 7.7 | 0.8 | 5 | 2 | 3 | 16 | 1.6 | 5.5 | 10 | 20.0 | CFHI7952 |
| 867 | 2.5 | 5.1 | 2.3 | 3.9 | 10.0 | 0.8 | 5 | 2 | 5 | 18 | 1.6 | 5.5 | 10 | 22.0 | CFHI7953 |
| 868 | 2.5 | 6.3 | 2.3 | 3.9 | 12.0 | 0.8 | 5 | 3 | 5 | 19 | 1.6 | 5.5 | 10 | 23.0 | CFHI7954 |
| 869 | 2.5 | 8.1 | 2.3 | 3.9 | 12.0 | 0.8 | 5 | 3 | 5 | 19 | 1.6 | 5.5 | 10 | 23.0 | CFHI7955 |
| 870 | 4-6 | 4.1 | 3.1 | 5.5 | 10.0 | 1.2 | 6 | 3 | 5 | 20 | 2.0 | 7.1 | 14 | 30.0 | CFHI7956 |
| 871 | 4-6 | 4.1 | 3.5 | 5.5 | 10.0 | 1.0 | 6 | 3 | 3 | 18 | 2.0 | 7.1 | 14 | 28.0 | CFHI7960 |
| 872 | 4-6 | 4.1 | 3.5 | 5.5 | 8.0 | 1.0 | 6 | 2 | 5 | 17 | 2.0 | 7.1 | 14 | 29.0 | CFHI7963 |
| 873 | 4-6 | 5.1 | 3.5 | 5.5 | 8.0 | 1.0 | 6 | 2 | 5 | 17 | 2.0 | 7.1 | 14 | 29.0 | CFHI7964 |
