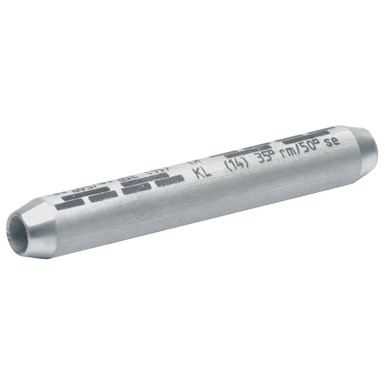

Compression Joint, Al, Standard Type

Material: E-aluminium
Surface: Bright
Additional information: re = round single solid wire, rm = round multi-stranded
se = sector shaped single solid wire, sm = sector shaped multi-stranded
sector shaped conductors must be pre-rounded

Features:

• Also available as barrier design with oil stop
• With bevelled edges for reduced winding expenditure in the assembly
• Easy to process due to crimp markings
• Simple cable entry due to precise internal chamfer
• For non-tension connections of medium-voltage aluminium cable 10 – 30 kV
• For pre-rounded sector shaped conductors
• Tube dimension to DIN 46267, part 2
• With code number for clear tool assignment
• Filled with contact grease for optimum crimp results

---
