Compression Cable Lugs, Special Type, Cu With 2 Slots, Double Crimping
Material: Copper (EN13600)
Surface: Tin-plated to protect against corrosion
Features:
- Simple and safe connection due to flat contact surfaces and internal chamfer
- Special design for mounting of 2 multi-stranded cables, e.g. acc. to EN 60228 Cl. 2
- Easy to process due to crimp markings

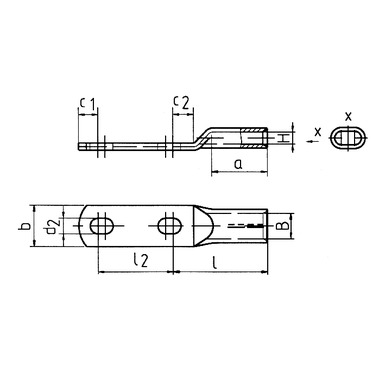

| PART NO. | Nominal cross- section mm² |
Conn. bolts dia. | Code | A | B | D2 | C1 | C2 | L | L2 | H | B | Weight/100 pcs. ~kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 136DP212 | 2 x 50 | 2 x M 12 | 22 DP | 42 | 34 | 13 | 13,5 | 17 | 79 | 50 – 62 | 10,0 | 20 | 23,20 |
| 137DP212 | 2 x 70 | 2 x M 12 | 24 DP | 42 | 34 | 13 | 13,5 | 17 | 79 | 50 – 62 | 11,5 | 23 | 29,64 |
| 138DP212 | 2 x 95 | 2 x M 12 | 29 DP | 47 | 42 | 13 | 13,5 | 18 | 93 | 50 – 62 | 13,5 | 27 | 38,50 |
| 139DP212 | 2 x 120 | 2 x M 12 | 32 DP | 50 | 48 | 13 | 19 | 22 | 100 | 50 – 62 | 15,5 | 31 | 45,80 |
