BW, CW, E1W Brass Glands


BW Brass Gland 2 Part

Material: Brass
Finish: Natural Brass Or Nickel Plated Design
Features: 2 & 3 Part Knurled Armour Lock
Design Features: 2 & 3 Part Knurled Armour Lock

Application:

Bw Brass Gland Generally for Dry Indoor Situation and Indoor Gland for Plastic or Rubber Insulated, Single Wired Armoured, Plastic or Rubber over Sheathed Cables.


BW Brass Gland 3 Part

Similar in Design and application to the BW-2 Part Gland. However an extra component is added, a cone ring. This prevents rotation of the wire and is used of knurling cone.



SR.NO.

Size
Cable Dimension

Armour Wire
Diameter


Under Armour
Dia.’A’ mm


Overall
Dia.’B’


Length
‘E’ mm


Length
(From Shoulder)
‘F’ mm

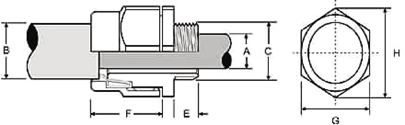

Gland Dimension

Metric Entry
Thread ‘C’


Across Flat
Dia. ‘G’ mm


Across
Corner
Dia.’H’ mm


Prod. Code

1

16

0.9

8.6

13.5

10

23

16mm

20

23

CBW-16

2

20S

0.90/1.25

12.3

17

10

23

20mm

23

24

CBW-20S

3

20L

0.90/1.25

14.3

20.5

10

30

20mm

25

27

CBW-20L

4

25S

1.25/1.60

18

23.8

10

30

25mm

31

50

CBW-25S

5

25L

1.25/1.60

20.4

27

10

32

25mm

30

38.5

CBW-25L

6

32

1.60/2.00

26.5

33

10

36

32mm

41.5

45.5

CBW-32

7

40S

1.60/2.00

31

37

10

36

40mm

15

50

CBW-40S

8

40L

1.60/2.00

32.5

43

15

40

40mm

49

54

CBW-40L

9

50S

2.00/2.50

37.8

48

15

40

50mm

58

65

CBW-50S

10

50L

2.00/2.50

44

53

15

45

50mm

62.3

69

CBW-50L

11

63S

2.5

50.5

60.5

15

45

63mm

70

77

CBW-63S

12

63L

2.5

56.5

65.5

15

50

63mm

76.3

85

CBW-63L

13

75S

2.5

62.5

72

15

50

75mm

85

95

CBW-75S

14

75L

2.50/3.15

67.5

78.5

15

75

75mm

90.5

99

CBW-75L

15

90

3.15

80

93

20

75

90mm

112

125

CBW-90
