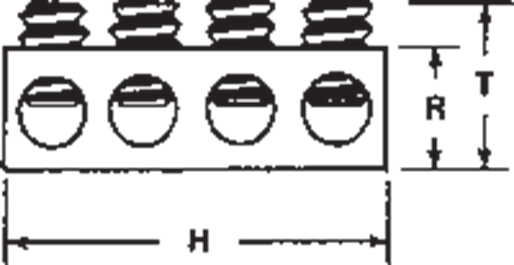

Aluminium Mechanical Lugs Dual Rated – Four Conductor
| Catalog Number |
Figure Number |
Wire Range |
Bolt Size |
C | E | F | G | H | J | K | R | T | Hex Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T4A4-250N* |
1 |
250kcmil-6 |
1/2 |
9/16 |
3 |
4 |
5/8 |
3-49/64 |
1-3/4 |
5/16 |
1-3/16 |
1-17/32 |
5/16 |
| T4A4-350N* |
1 |
350kcmil-6 |
1/2 |
9/16 |
3 |
4-5/16 |
5/8 |
4-1/64 |
1-3/4 |
5/16 |
1-3/8 |
1-17/32 |
5/16 |
| T4A4-600N* |
3 |
600kcmil-2 |
1/2 |
9/16 |
3-1/4 |
5-1/2 |
5/8 |
5 |
1-3/4 |
3/8 |
1-1/2 |
1-7/8 |
1/2 |
| T4A4-800N* |
2 |
800kcmil-350kcmil |
1/2 |
9/16 |
3-5/8 |
5-31/32 |
5/8 |
6 |
1-3/4 |
1/2 |
1-13/16 |
2-13/64 |
1/2 |
| T4A4-1000N* |
4 |
1000kcmil-350kcmil |
1/2 |
9/16 |
3-5/8 |
5-31/32 |
5/8 |
6-1/2 |
1-3/4 |
1/2 |
1-13/16 |
2-13/64 |
1/2 |
