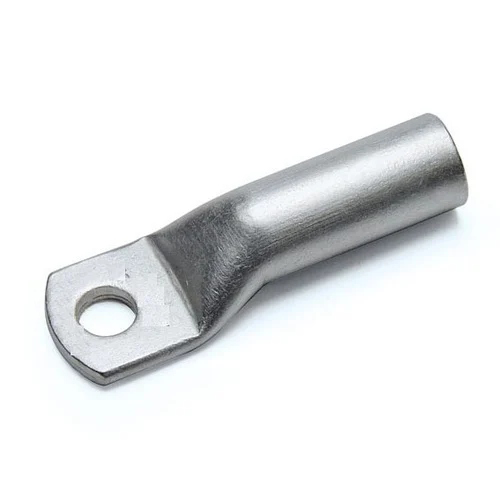

AA-M Monometallic Aluminium Terminals For Aluminium Cables

Material: Aluminium

Conductor
Size
sqmm		 Ø
Stud
mm		 Ref.

Øi		 Dimensions mm

B

M

N

L

d
16 8 AA 16-M 8 5,5 21 13 11 77,0 8,4
25 8 AA 25-M 8 6,5 21 13 11 77,0 8,4
35 8
10		 AA 35-M 8
AA 35-M 10		 8,0
8,0		 23
23		 13
13		 11
11		 77,5
77,5		 8,4
10,5
50 12
14		 AA 50-M 12
AA 50-M 14		 9,0
9,0		 26
26		 16
18		 14
16		 91,0
95,0		 13,2
15,0
70 12
14		 AA 70-M 12
AA 70-M 14		 11,0
11,0		 27
27		 16
18		 14
16		 91,0
95,0		 13,2
15,0
95 12
14		 AA 95-M 12
AA 95-M 14		 12,5
12,5		 27
27		 16
18		 16
14		 91,0
95,0		 13,2
15,0
120 12
14		 AA 120-M 12
AA 120-M 14		 13,7
13,7		 35
35		 16
18		 16
14		 115,0
119,0		 13,2
15,0
150 12
14		 AA 150-M 12
AA 150-M 14		 15,5
15,5		 34
34		 16
18		 14
16		 115,0
119,0		 13,2
15,0
185 12
14		 AA 185-M 12
AA 185-M 14		 17,0
17,0		 42
42		 20
22		 14
16		 122,0
126,0		 13,2
15,0
240 12
14		 AA 240-M 12
AA 240-M 14		 19,5
19,5		 44
44		 20
22		 14
16		 122,0
126,0		 13,2
15,0

300		 12
14
16
16		 AA 300-34 M 12
AA 300-34 M 14
AA 300-34 M 16
AA 300-M 16		 22,5
22,5
22,5
23,3		 47
47
47
54		 22
22
22
19		 14
16
17
17		 130,0
132,0
133,0
172,0		 13,2
15,0
17,0
17,0
400 16 AA 400-M 16 26,0 56 19 17 172,0 17,0
500 16 AA 500-40 M 16 29,1 57 22 19 177,0 17,0
630 16 AA 630-M 16 32,5 70 22 19 177,0 17,0
